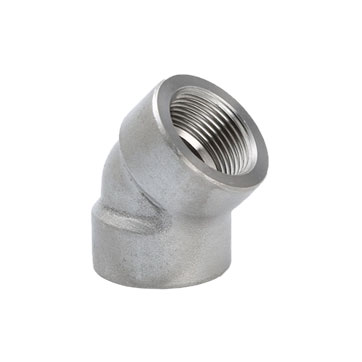

45°螺紋彎頭品牌
維亞克產地
浙江樣本
暫無規格外形（長*寬*高）：
-功率：
-重量：
-看了45°螺紋彎頭的用戶又看了
留言詢價
虛擬號將在 180 秒后失效
使用微信掃碼撥號
承插焊管件（一）
GB/T 14383、HGJ10、SHJ410、ASME B16.11、JIS B2316
Socket welding pipe fittings
公稱通徑 Nominal diameter DN(in) | 深插孔 深度 Depth of socket | 壁厚Wall thickness | 中心至承插孔底Center to bottom of socket | ||||||||
A | |||||||||||
Cmin | 90°彎頭、三通、四通 "Elbow、Tee、Cross | 45°彎頭 45°Elbow | |||||||||
A | B(in) | Jmin | 3000 Sch80 | 6000 Schl60 | 9000 XXS | 3000 Sch80 | 6000 Schl60 | 9000 XXS | 3000 Sch80 | 6000 Schl60 | 9000 XXS |
6 | 1/8 | 10 | 3.2 | 4.0 | - | 11 | 11 | - | 8 | 8 | - |
8 | 1/4 | 10 | 3.8 | 4.6 | - | 11 | 14 | - | 8 | 8 | - |
10 | 3/8 | 10 | 4.0 | 5.1 | - | 14 | 16 | - | 8 | 11 | - |
15 | 1/2 | 10 | 4.5 | 5.6 | 9.4 | 16 | 19 | 25 | 11 | 13 | 16 |
20 | 3/4 | 13 | 5.0 | 7.0 | 9.8 | 19 | 22 | 29 | 13 | 14 | 19 |
25 | 1 | 13 | 5.6 | 7.9 | 11.4 | 22 | 27 | 32 | 14 | 18 | 21 |
32 | 11/4 | 13 | 6.3 | 7.9 | 12.2 | 27 | 32 | 35 | 18 | 21 | 22 |
40 | 11/2 | 13 | 6.3 | 8.9 | 12.7 | 32 | 38 | 38 | 21 | 25 | 25 |
50 | 2 | 16 | 7.0 | 11.0 | 13.9 | 38 | 41 | 54 | 25 | 29 | 29 |
65 | 21/2 | 16 | 8.9 | 12.5 | - | 41 | 57 | - | 29 | 32 | - |
80 | 3 | 16 | 10.0 | 13.8 | - | 57 | 64 | - | 32 | 35 | - |
100 | 4 | 16 | 10.7 | - | - | 67 | - | - | 41 | - | - |
注: 1)本表列出的為承插焊管件各相同部分尺寸,各標準規定的接管尺寸及承插孔徑d1，流通孔徑d2，見第46頁。
2) 3000、 6000、 9000為壓力等級代號,單位為磅/平方英寸; sch80、sch160、XXS為壁厚等級代號。
3) 45°、 90°彎頭當其為異徑時,流通孔徑d2的尺寸用小口徑公稱通徑相對的尺寸d2。
承插焊管件（二）
GB/T 14383、HGJ10、SHJ410、ASME B16.11、JIS B2316
Socket welding pipe fittings
公稱通徑 Nominal diameter DN(in) | 深插孔 深度 Depth of socket | 壁厚Wall thickness | 管帽頂厚 The thickness of the pipe cap top | 安裝長度 Installatoin length | 中心至承插孔底 Center to bottom of socket | |||||||||
45°斜三通 Lateral tee | ||||||||||||||
Cmin | Kmin | 雙承口管箍 Double coupling | 單承口管箍 Half coupling | A | H | |||||||||
A | B(in) | Jmin | 3000 Sch80 | 6000 Schl60 | 9000 XXS | 3000 Sch80 | 6000 Schl60 | 9000 XXS | E | F | 3000 Sch80 | 6000 Schl60 | 3000 Sch80 | 6000 Schl60 |
6 | 1/8 | 10 | 3.2 | 4.0 | - | 5.0 | 6.5 | - | 6 | 16 | - | - | - | - |
8 | 1/4 | 10 | 3.8 | 4.6 | - | 5.0 | 6.5 | - | 6 | 16 | 32 | - | 8 | - |
10 | 3/8 | 10 | 4.0 | 5.1 | - | 5.0 | 6.5 | . | 6 | 18 | 37 | . | 8 | - |
15 | 1/2 | 10 | 4.5 | 5.6 | 9.4 | 6.5 | 8.0 | 11.0 | 10 | 22 | 41 | 51 | 11 | 13 |
20 | 3/4 | 13 | 5.0 | 7.0 | 9.8 | 7.0 | 9.0 | 13.0 | 10 | 24 | 51 | 60 | 13 | 14 |
25 | 1 | 13 | 5.6 | 7.9 | 11.4 | 10.0 | 11.0 | 14.0 | 13 | 29 | 60 | 71 | 14 | 18 |
32 | 11/4 | 13 | 6.3 | 7.9 | 12.2 | 10.0 | 12.0 | 14.0 | 13 | 30 | 71 | 81 | 18 | 21 |
40 | 11/2 | 13 | 6.3 | 8.9 | 12.7 | 11.0 | 13.5 | 16.0 | 13 | 32 | 81 | 98 | 21 | 25 |
50 | 2 | 13 | 7.0 | 11.0 | 13.9 | 13.0 | 16.5 | 19.0 | 19 | 41 | 98 | 120 | 25 | 29 |
65 | 21/2 | 16 | 8.9 | 12.5 | . | 16.0 | 19.5 | - | - | 43 | - | - | - | - |
80 | 3 | 16 | 10.0 | 13.8 | - | 19.0 | 23.0 | - | 19 | 45 | - | . | . | - |
100 | 4 | 16 | 10.7 | - | . | 22.0 | 28.5 | - | 19 | 48 | - | - | - | - |
注:1)壁厚Cmin為任一點壁厚的*小值。2)異徑管件中小口徑部分中心至承插孔底的距離A與大口徑部分為A相同。3）按順序要求，管件也可以加工承插焊和螺紋混合的聯接形式。
Note:1)Wall thickness Cmin to a minimum wall thickness.2)Reducing pipe fittings of small diameter part of the center distance to the bottom bearing insert A part with large diameter is the same A.3)According to the requirements of the order,pipe fittings can also be processed into socket welding and threaded connection form of hybrid.
